Model 3601A High Voltage/High Resistance Switch
Model 3601A is an automatic scanner to switch high resistance standards in the field of DC voltage standard. High voltage connectors are inserted and removed mechanically. Not using a relay reduces error of the device. The device is controlled by PC via USB interface.
Specifications
| Item/Model | 10Ω |
| Input Numbers | 100Ω,1kΩ,10kΩ,100kΩ |
| Output Numbers | 1pF(6100B) |
| Maximum Voltage | 10pF(6100B) 100pf |
| Maximum Current | 1000pF,10nF,100nF,1µF |
| Insulation Among Wires | more than 100 TΩ |
| Contact Life | more than 100,000 times |

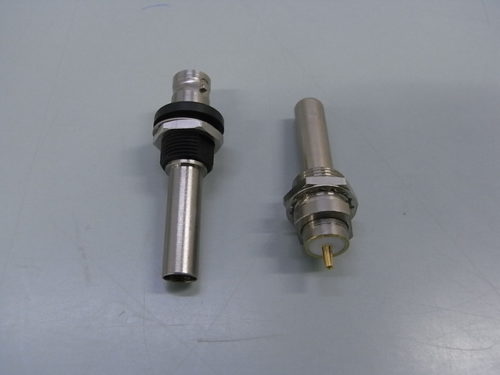

| Input/Output Terminal | MHV (support variety of connectors, such as BNC-HV, BPO MUSA, LEMO, SHV and LEMO) |
| Motion Time | Maximum Less Than 1 sec. (when all connectors are off) |
| Interface | USB (standard feature) |
| Temperature Range | +10 ℃ ～ +40 ℃ |
| Power Supply | 100 Vac、50/60 Hz、1 A |
| Size (WxDxH) mm | 450×450×88（W×D×H） |
| Weight | Approx. 15 kg |
- Specifications are subject to change without notice due to improvement
- SunJEM will design products to meet your individual requirements.
Please feel free to consult with us for products other than ready-made ones.
